Piston Reciprocating Air Compressor

Number：

Inquiry Add to Cart

Details

DESCRIPTION

Product Description

Fusheng series air-cooled reciprocating air compressors are designed to be suitable for common working pressures of 7~12kg/cm2G, to meet the piston displacement of various applications, horsepower from 0.37kW (½hp) to 15kW (20hp), heavy load and low speed Design, suitable for long-term operation, equipped with automatic and semi-automatic control, according to the needs of use, empty heavy trucks or shutdown energy-saving operation. Applicable to automobile repair, spraying, material manufacturing, textile, tire and other industries. 2-stage (3-stage) compression can be designed for special purposes, with a working pressure of 18 kg/cm2G and 35 kg/cm2G, and a wider range of uses. The suction and exhaust valves are made of Swedish special valve plate steel, with impact resistance and high toughness suitable for high temperature operation. The cylinders, connecting rods, and piston rings are precision machined and ground. The running balance is low in vibration and large in air volume. Fusheng provides our users with high-quality air compressor products with safety protection (Safety), easy service (Service), stable and reliable (Stable), international certification (Specification-compliant) and energy saving (Energy Saving). significant benefits. The crankshaft is forged with high-quality steel, surface-hardened, with high wear resistance, and is equipped with a balance block to operate with low vibration. Connecting rod - Made of high-strength ductile cast iron, precision machined with a special machine, the parallelism of the boring is kept within a certain standard, so that the compressor runs more smoothly and stably.

ADVANTAGE

Product advantages

Product advantages

Fusheng series air-cooled reciprocating air compressors are designed to be suitable for common working pressures of 7~12kg/cm2G, to meet the piston displacement of various applications, horsepower from 0.37kW (½hp) to 15kW (20hp), heavy load and low speed Design, suitable for long-term operation, equipped with automatic and semi-automatic control, according to the needs of use, empty heavy trucks or shutdown energy-saving operation.
Product advantages

Applicable to automobile repair, spraying, material manufacturing, textile, tire and other industries. 2-stage (3-stage) compression can be designed for special purposes, with a working pressure of 18 kg/cm2G and 35 kg/cm2G, and a wider range of uses.
Product advantages

High toughness is suitable for high temperature operation. Cylinders, connecting rods and piston rings are machined and ground by precision machining. Excellent air tightness and low friction. With high precision crankshaft and crankcase, it has low vibration and large air output.

SPECIFICATION SELECTION

Specification selection

VA(TA) series

model	Exhaust pressure (MPa)	Exhaust volume (m3/min)	Motor (KW)
VA-65	0.8	0.08	0.75
TA-65	0.8	0.17	1.5
VA-80	0.8	0.36	3
TA-80	0.8	0.5	4
VA-100	0.8	0.67	5.5
TA-100	0.8	0.95	7.5
TA-120	0.8	1.5	11
TA-125	0.8	2.0	15
TA-220*	0.8	2.5	18.5
TA-240*	0.8	3.0	22

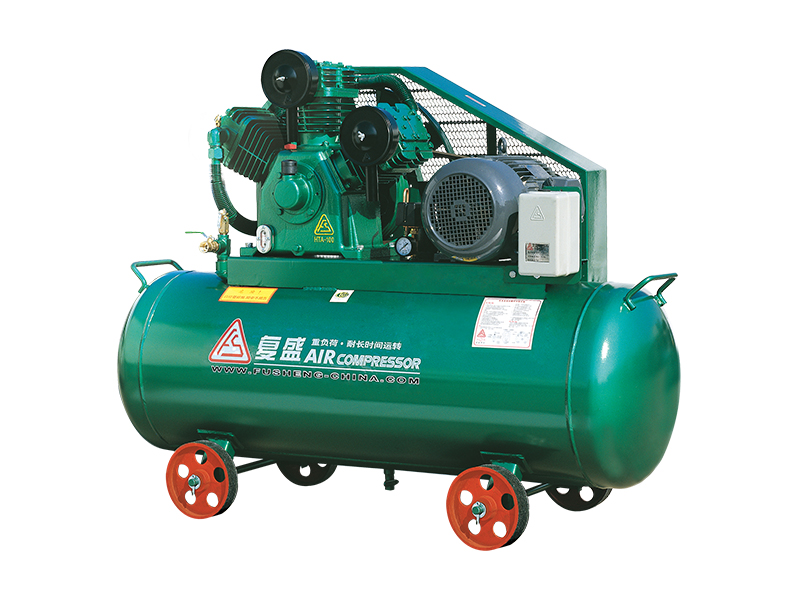

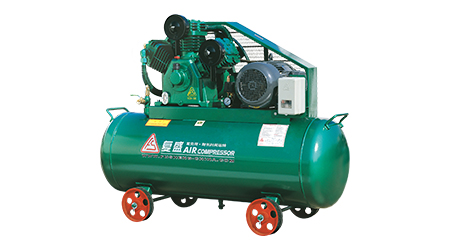

HTA系列

型号	排气压力(MPa)	排气量（m3/min）	电动机（KW）
HTA-65	1.25	0.18	1.5
HTA-65H	1.25	0.22	2.2
HTA-80	1.25	0.45	4
HTA-100	1.25	0.6	5.5
HTA-100H	1.25	0.8	7.5
HTA-120	1.25	1.22	11
HTA-125	1.25	1.5	15
HTA-220	1.25	2.0	18.5
HTA-240	1.25	2.44	22

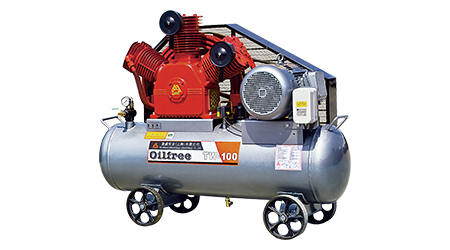

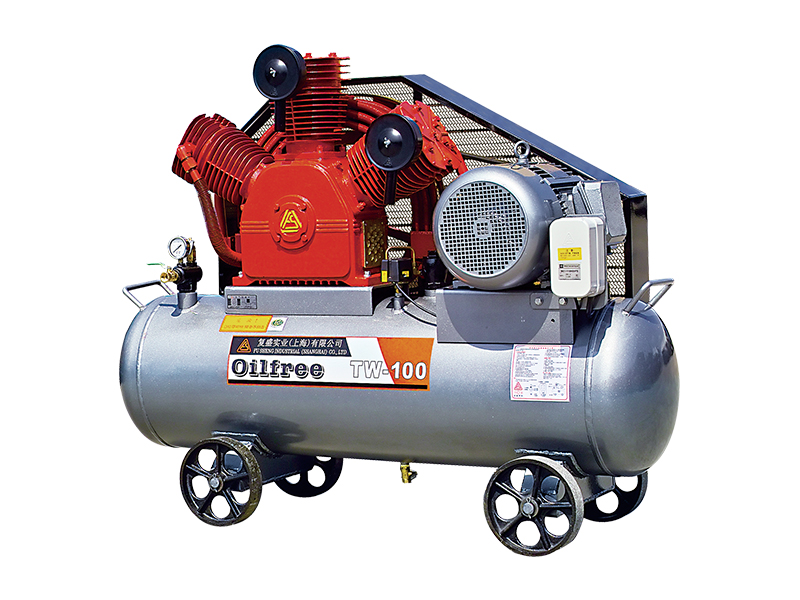

W系列无油风冷往复空压机

型号	排气量(m3/min)	排气压力(MPa)	额定功率(KW)
VW30	0.22	0.8	2.2
VW50	0.42	0.8	4
TW75	0.65	0.8	5.5
TW100	0.9	0.8	7.5
TW150	1.35	0.8	11
TW200	1.8	0.8	15
TW300	2.7	0.8	22
TW350	3	0.8	26
TW75H	0.6	1.0	5.5
TW100H	0.83	1.0	7.5
TW150H	1.1	1.0	11
TW200H	1.5	1.0	15
TW300H	2.2	1.0	22
TW350H	2.6	1.0	26

FH系列中压微油

型号	排气量(m3/min)	排气压力(MPa)	额定功率(KW)
FH30/16	0.22	1.6	2.2
FH55/16	0.42	1.6	4
FH100/16	0.75	1.6	7.5
FH150/16	1.1	1.6	11
FH55/35	0.25	3.5	4
FH100/35	0.45	3.5	7.5
FH150/35	0.8	3.5	11
FH200/35	1.0	3.5	15
FHQ150/45	0.8	4.5	11
FHQ200/45	1.0	4.5	15
